LTPCBA EMC Protection Board

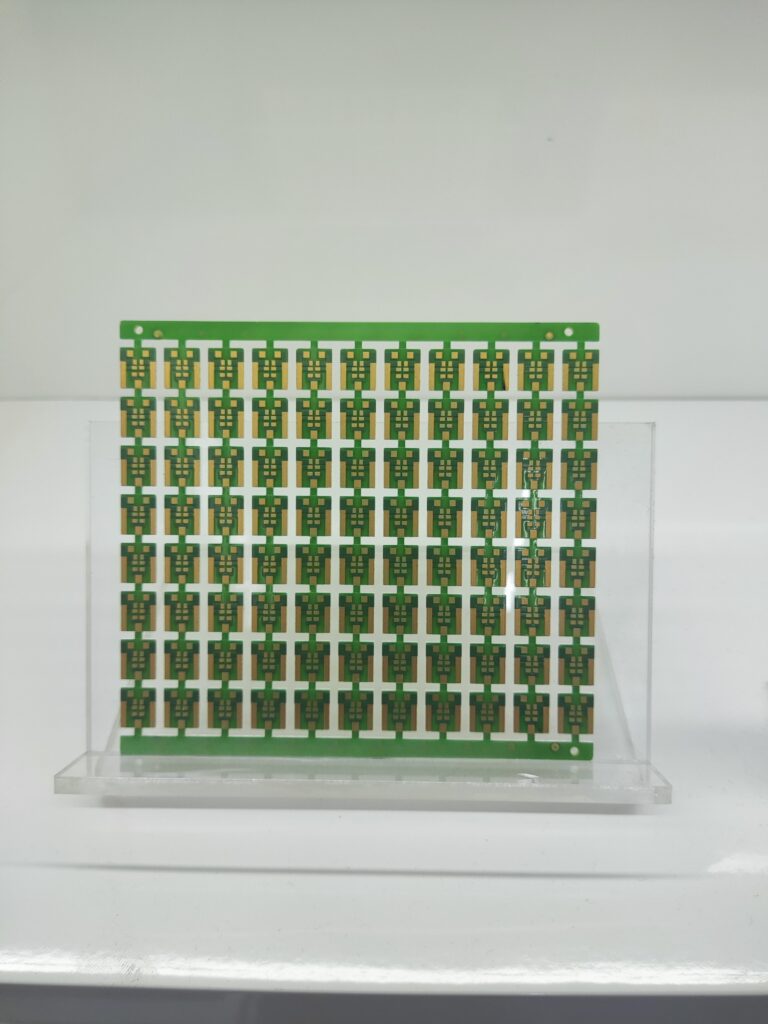

As a professional PCBA manufacturer, LTPCBA introduces this EMC protection bare PCB board, featuring modular design and high compatibility to serve as a core platform for electromagnetic compatibility (EMC) protection in electronic devices.

1. Technical Features: Precision Engineering for EMC Protection

– Panelized Design & Standardization

Utilizes multi-unit panel layout with regular array arrangement, compatible with automated SMT and soldering processes. Standardized unit design ensures consistent performance across mass production.

– Gold-Plated Pads & High Reliability

Large-area gold-plated pads offer excellent conductivity, oxidation resistance, and durability. Ideal for high-frequency signal transmission in EMC components, they maintain reliable electrical connections even in harsh industrial environments.

– Precision Circuit Routing

Implements controlled impedance routing to minimize signal reflection and crosstalk. Provides a low-interference environment for EMC components such as filters and ferrite beads, maximizing electromagnetic interference suppression.

2. Component Compatibility: Universal Platform for EMC Components

This PCB accommodates a wide range of EMC components through its modular design and gold-plated pads:

– EMI Filters

Supports power filters (for AC/DC inputs, suppressing 10kHz~30MHz conducted interference) and signal filters (for data/control lines, filtering high-frequency noise), building full-chain interference isolation.

– Ferrite Beads

Pad locations allow series connection in signal/power lines to effectively attenuate RF interference above 100MHz. Particularly suited for automotive and consumer electronics with high-frequency sensitivity.

– TVS Diodes

Designed for power inputs and signal interfaces, offering nanosecond-level transient voltage suppression against surges from ESD or lightning strikes, protecting sensitive circuits in industrial and medical equipment.

– Common-Mode Chokes

Pad areas support installation in power inputs and differential signal lines, suppressing common-mode interference in automotive CAN bus and industrial Ethernet applications.

3. Function & Application: Customized EMC Solutions

By combining different EMC components, this PCB enables bidirectional EMC protection (anti-interference + anti-radiation) for multiple sectors:

– Automotive Electronics

Protects sensors and infotainment systems through TVS + common-mode choke + ferrite bead combinations, resisting EMI from engines and high-voltage wiring while preventing device radiation from interfering with vehicle communication systems.

– Industrial Control

Provides EMC protection for PLCs and servo drives using EMI filter + common-mode choke configurations, suppressing interference from variable-frequency drives and motors to ensure accurate signal transmission.

– Consumer Electronics

Supports smart appliances and portable devices through ferrite beads + EMI filter setups, addressing power harmonic interference and device radiation issues to improve EMC certification success rates.

Conclusion

LTPCBA’s EMC Protection Board delivers a flexible, manufacturer-oriented solution through **modular architecture, full component compatibility, and multi-scenario adaptability**. Whether meeting stringent automotive standards, resisting industrial interference, or satisfying consumer space constraints, this PCB enables customized EMC protection through configurable component integration — helping customers achieve both performance and reliability in electromagnetic compatibility.
