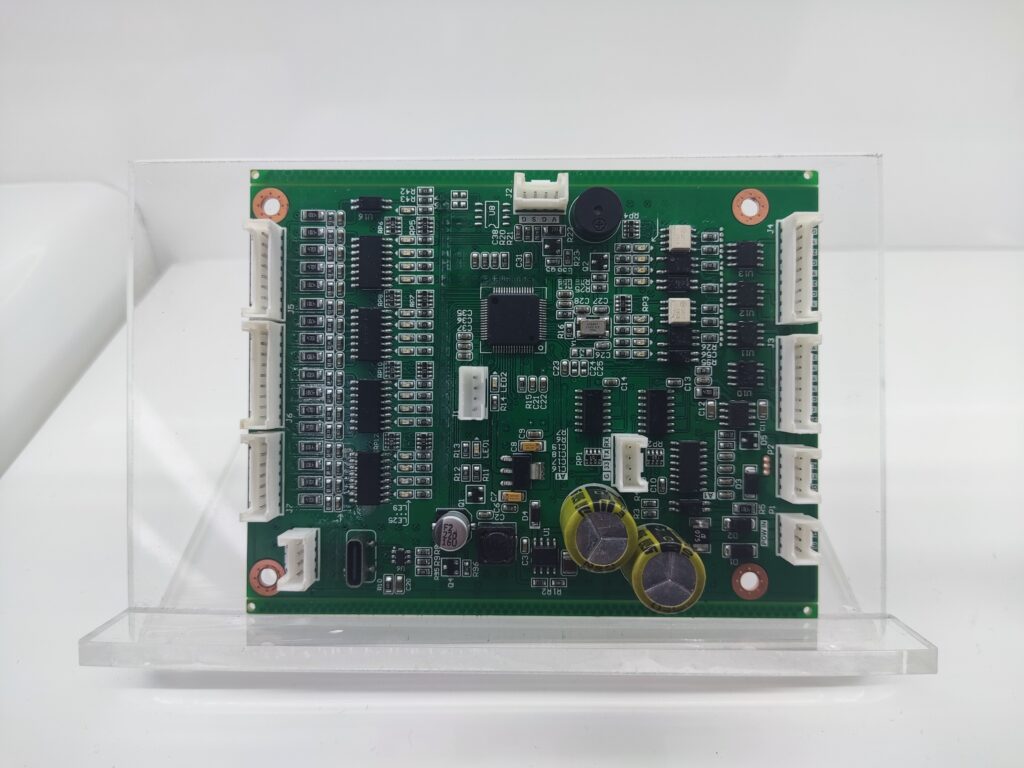

LTPCBA Motor Control PCBA

As the made-to-order beverage industry grows rapidly, equipment demands for motor control are reaching new levels of precision, intelligence, and compatibility. LTPCBA, a specialized manufacturer in industrial control PCBA, introduces its Motor Control PCBA—a core “power brain” for beverage equipment that delivers precise motion control, smart remote management, and wide-range compatibility, supporting the industry’s intelligent transformation.

1. Functional Matrix: Multi-Dimensional Control for Beverage Equipment

Designed around **precision control and intelligent management**, this PCBA offers a complete functional system:

– **Precise Motion & Cleaning Control:**

Enables accurate **travel control** for motor movement and speed regulation, ensuring consistency in beverage preparation steps such as mixing and filling. Integrated **jog cleaning function** uses specialized motor patterns to efficiently clean equipment components, maintaining hygiene standards and extending service life.

Smart Management & Remote O&M:

Supports **background parameter configuration**, allowing motor settings to be adjusted for different beverage recipes. Enables remote monitoring of machine status, helping operators track performance, identify issues in real time, and improve maintenance efficiency.

2. Application Focus: Broad Compatibility for Beverage Equipment

This PCBA is designed specifically for made-to-order beverage applications, delivering wide-ranging compatibility:

– Global Voltage & Motor Compatibility:

Supports **AC 100V-250V wide voltage input**, adapting to grid standards across regions—ideal for global deployment. Uses a **servo-driven high-speed motor architecture** to deliver strong, stable power for high-efficiency beverage equipment such as drink dispensers and fresh juicers.

– Clear Scenario Positioning:

Built for commercial beverage settings including bubble tea stations, café milk frothers, and fresh juice machines. Excels in high-frequency, on-demand environments where reliability and precision are critical.

3. Component Design & Layout: Optimized for Performance & Integration

The PCBA layout reflects LTPCBA’s focus on performance density and functional integration:

– Core Computing & Communication:

Powered by an **STM32-series MCU** (Arm® Cortex®-based 32-bit microcontroller), delivering strong processing for motor control and multi-task scheduling. Integrated **RS485 and CAN bus** support ensures stable communication between devices, modules, and host systems.

– Functional Zoning & Modular Design:

Implements physical separation between the **power module** (wide-voltage circuit), **motor drive module** (servo driver), and **communication control module** (MCU and interfaces) to reduce EMI and enhance stability. Standardized connectors simplify integration with motors, sensors, and peripherals, streamlining assembly and maintenance.

4. Manufacturing Process: Precision Build for Reliable Performance

LTPCBA’s “process-defines-reliability” approach ensures robustness through advanced manufacturing:

– **High-Precision Assembly & Soldering:**

Applies high-precision **SMT placement** (±0.02mm) for STM32 MCUs and communication chips, ensuring signal integrity. High-reliability soldering processes for power components and connectors prevent failure under continuous high-load operation.

– Comprehensive Reliability Testing:

Each unit undergoes **wide-voltage input tests**, **motor load endurance tests**, **communication compatibility validation**, and **high-low temperature cycling** to ensure stable performance under real-world beverage equipment conditions.

– Customized Environmental Protection:

Optional **conformal coating** protects against moisture and mild corrosion commonly found in beverage environments, extending product life and supporting long-term reliability.

Conclusion

LTPCBA’s Motor Control PCBA sets a new standard for precision, intelligence, and adaptability in beverage equipment. As a trusted PCBA manufacturer, LTPCBA continues to advance industrial control solutions through technology innovation and manufacturing excellence—delivering **reliable, smart, and efficient** core control systems that support the beverage industry and beyond.
