LTPCBA New Energy Portable Charging PCBA

As new energy vehicle charging demands grow increasingly diverse, users seek both “reliable fixed charging and convenient portable solutions.” Specializing in new energy PCBA manufacturing, LTPCBA presents its Portable Charging PCBA—a versatile, high-performance solution engineered to deliver safety and portability for both home wall-mounted installations and mobile charging applications.

1. Functional Innovation: Wide Compatibility & Comprehensive Safety

Designed for “full-range compatibility and end-to-end protection,” this PCBA delivers a robust functional matrix:

– Wide Voltage Input & Adaptive Power Control: Supports AC 220V ±20V input, accommodating common household voltage fluctuations. With adjustable charging power from 6A to 32A, it intelligently adapts to vehicle battery requirements, ensuring efficient home charging and flexible on-the-go power delivery.

– Multi-Layer Safety Protection: Equipped with a high-performance ARM-based main control chip, the PCBA integrates comprehensive safeguards including **lightning surge protection, over-current/over-voltage/under-voltage protection, temperature monitoring, and leakage detection**. From grid connection to charging output, the system continuously monitors and responds to anomalies, ensuring maximum safety.

– Portable Charging Innovation: Enables portable AC charging via standard household outlets, allowing users to charge their vehicles anywhere with a compatible socket. This feature eliminates “charger anxiety” during travel or emergencies, offering true charging freedom.

2. Application Scenarios: Dual Coverage for Fixed and Portable Use

This PCBA serves as a versatile core component across two key scenarios:

– Wall-Mount Charging: As the control center for home garages and community charging stations, it provides stable performance and full protection—creating a dependable “home charging station” experience.

– Portable On-the-Go Charging: Integrated into portable charging cables, it enables plug-and-charge convenience through standard outlets. Whether on the road or away from fixed chargers, it simplifies EV charging—making it as easy as plugging in a home appliance.

3. Component Design & Layout: Precision Engineering for Performance and Portability

The PCBA’s layout reflects LTPCBA’s focus on optimizing performance within compact dimensions:

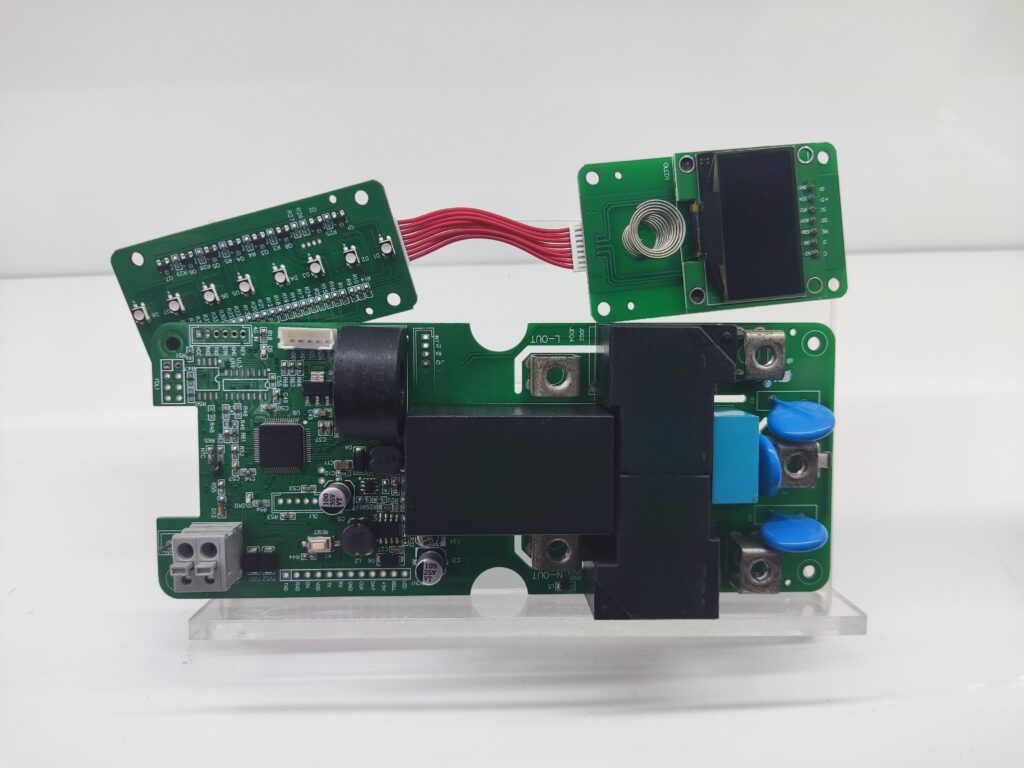

– Modular Functional Zoning: Implements a clear separation between the power module (high-current relays, HV capacitors), control module (ARM MCU, signal circuits), and **interaction module (display, buttons). This zoning minimizes interference, enhances current handling, and ensures signal accuracy.

– Universal Interface Design:Features standardized connectors for charging plugs and household outlets. A compact PCB layout meets the space constraints of portable devices, balancing full functionality with a small footprint.

– Industrial-Grade Components: Key power components are rated for high voltage and surge resistance, supporting reliable operation under high loads. The highly integrated ARM MCU delivers strong processing power with low energy consumption, enabling intelligent control within a minimal space.

4. Manufacturing Excellence: Precision Processes for Reliable Performance

LTPCBA’s “process-defines-reliability” approach ensures consistent quality through advanced manufacturing:

– High-Precision SMT Assembly: Utilizing precision SMT placement (±0.02mm) for ARM chips and signal ICs, the process maintains signal integrity and connection reliability. Custom soldering techniques reinforce joints for high-current components, preventing failure under continuous load.

– Multi-Scenario Reliability Testing: Each unit undergoes rigorous testing, including voltage fluctuation tests, high-low temperature cycling (-20°C to 60°C), and vibration tests—simulating both home and mobile environments to ensure stable performance in all conditions.

– Optional Conformal Coating: For added durability in damp garages or outdoor settings, a professional conformal coating is available to boost resistance to moisture, dust, and corrosion—extending product life across diverse environments.

Conclusion
