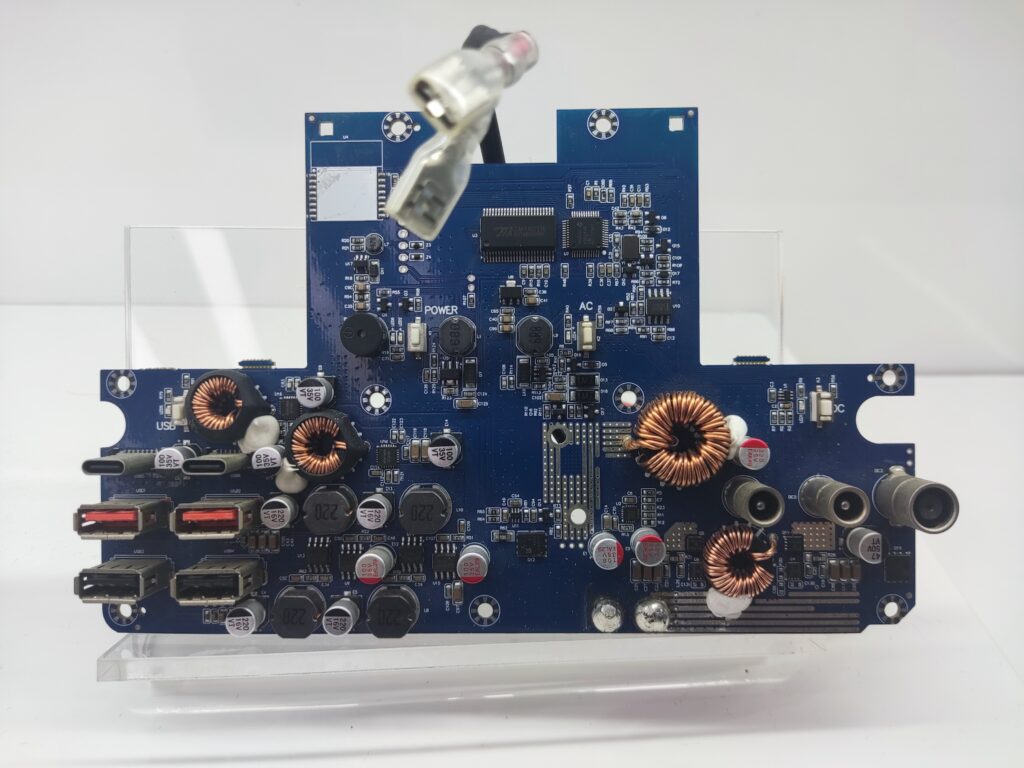

LTPCBA Portable Power Station PCBA

In critical scenarios like field operations, emergency maintenance, and vehicle rescue, power interruption often means operational halt or elevated risks. As a specialized manufacturer in new energy PCBA solutions, LTPCBA introduces its Portable Power Station PCBA — engineered to deliver versatile output, extended battery life, and lightweight portability. Serving as the central “power hub” for mobile emergency and outdoor electricity needs, it provides reliable energy support across multiple industries.

1. Functional Matrix: Multi-Interface Support for Full-Scene Power Output

Designed for “all-scenario power supply and high-efficiency conversion,” this PCBA enables a comprehensive energy delivery system:

High-Capacity Storage & Fast Recharge:

Equipped with a **574Wh 6-series NMC lithium battery** for high energy density and extended runtime. Features **120W fast charging via a DC7909 input**, significantly reducing recharge time.

Versatile Outputs for Diverse Devices:

Supports **AC output** for small appliances and power tools; includes **USB-A and USB Type-C** ports for phones, tablets, and laptops; and integrates a **cigarette lighter output** for emergency car engine start — delivering true all-in-one power supply capability.

2. Application Focus: A Complete Solution for Emergency & Outdoor Scenarios

This PCBA meets critical power needs across multiple fields, becoming synonymous with “mobile power assurance”:

Outdoor Operations & Field Work:

Powers laptops and communication devices during field surveys or camping, enabling productivity beyond the grid.

Emergency Maintenance & Medical Support

Supplies test instruments and tools during repairs; compatible with portable medical devices (e.g., vital signs monitors), ensuring power continuity in emergency rescue situations.

Vehicle Emergency Start:

Enables jump-starting of vehicles via the cigarette lighter or dedicated interface — a reliable “power airbag” for drivers.

3. Component Design & Layout: Precision Engineering for Power & Portability

The PCBA layout reflects LTPCBA’s focus on balancing power density and portability:

Modular Functional Zoning:

Separates the **power management zone** (battery charge/discharge control, protection circuits) from the **output interface zone** (AC inverter, USB PD circuit, lighter driver) to minimize EMI and improve conversion efficiency.

High Integration & Compact Components:

Utilizes high-energy-density battery management ICs and miniaturized inductors/capacitors to integrate multiple functions within a compact PCB — achieving a lightweight, portable design ideal for field use.

Safety Redundancy Design:

Incorporates four-layer protection for the battery (over-charge, over-discharge, over-current, short-circuit). Industrial-grade power MOSFETs and interface ICs ensure safety for both the battery and connected devices.

4. Manufacturing Process: Precision Build for Reliable Mobile Power

LTPCBA’s “process-defines-reliability” approach ensures robustness through specialized manufacturing:

Battery Management Process:

Uses automotive-grade soldering for battery protection ICs and reinforced spot-welding for cell-PCB connections — ensuring safety and durability under vibration and outdoor conditions.

High-Precision Assembly:

Applies ±0.02mm SMT placement accuracy for USB ports and AC inverter modules. Combines low-temperature reflow and manual soldering for high-frequency components to enhance power conversion efficiency and long-term stability.

Environmental Durability:

Optional **conformal coating** improves moisture, dust, and corrosion resistance. All key components undergo **-20°C to 60°C thermal cycling tests**, ensuring stable performance in extreme conditions.

Conclusion

LTPCBA’s Portable Power Station PCBA redefines mobile and emergency power supply with its multi-scenario compatibility, high reliability, and lightweight design. As an experienced PCBA manufacturer, LTPCBA continues to advance new energy technologies — offering smarter power management and more precise manufacturing to help industries achieve both efficiency and safety in the era of mobile energy.
