LTPCBA TVS Protection Board: Robust Defense Against Transient Surges with Customizable Component Integration

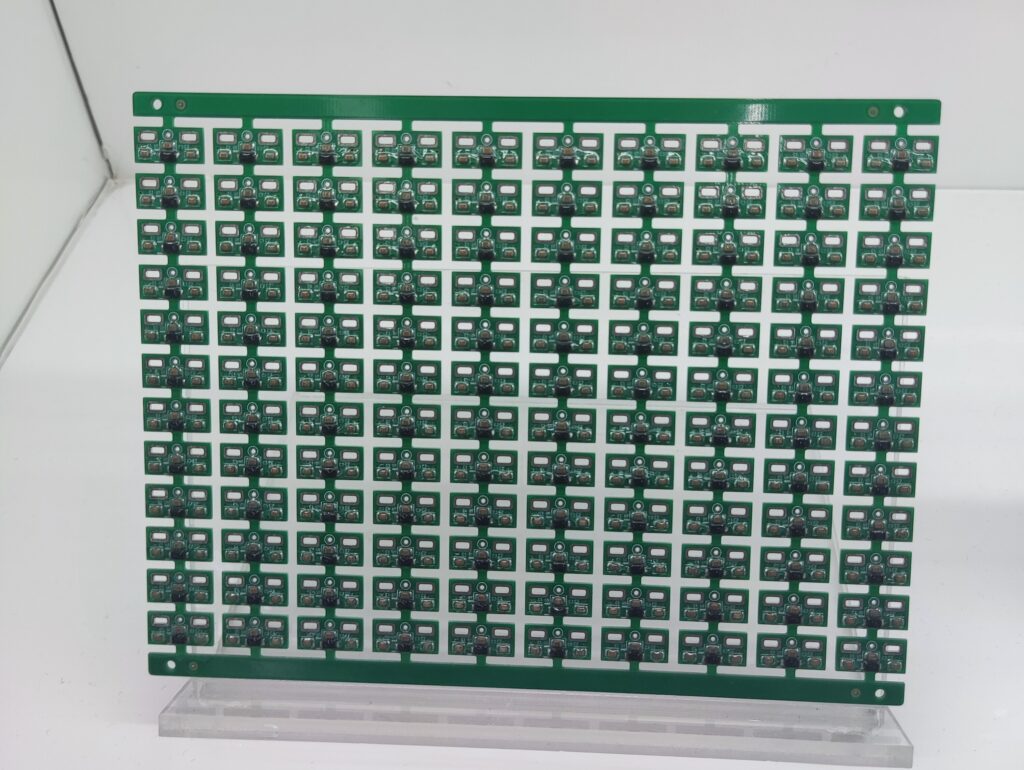

As a professional PCBA manufacturer, LTPCBA introduces this TVS (Transient Voltage Suppression) protection bare PCB board, featuring modular panel design and highly compatible pad layouts to serve as a core hardware platform for transient surge protection in electronic devices.

1. Technical Features: Engineered for Surge Protection Reliability

– Panelized Design & Standardized Units

Multi-unit panel layout supports automated SMT production, enabling high-volume manufacturing while ensuring circuit consistency across all TVS protection modules. This standardized approach guarantees both mass production efficiency and stable performance.

– Precision Pads & Thermal Optimization

Each unit features pads precisely matched to TVS diode packages (e.g., surface-mount DO-214, through-hole DO-41), with sufficient copper area to enhance heat dissipation during surge events — preventing TVS failure and ensuring long-term reliability.

– High-Reliability PCB Manufacturing

Industrial-grade PCB substrate and solder mask provide excellent insulation and chemical resistance, maintaining stable performance in harsh environments such as humid industrial sites or automotive engine compartments.

2. Component Compatibility: Universal Platform for Surge Protection

This PCB supports flexible configuration with key surge protection components:

– TVS Diodes

Compatible with various TVS types (unidirectional/bidirectional, high-power automotive TVS) for nanosecond-level clamping against lightning strikes, ESD, and power switching surges.

– Varistors

Ideal for industrial power inputs requiring protection against low-frequency surges. Can be combined with TVS diodes to create a comprehensive “fast-slow” surge protection system.

– Ceramic Capacitors & Fuses

Ceramic capacitors filter high-frequency noise in surges, while fuses serve as the final safeguard by disconnecting the circuit during extreme overload — forming a complete “filter-clamp-protect” surge defense chain.

3. Function & Application: Customized Surge Solutions

By combining different surge components, this PCB enables “precise clamping + multi-stage protection” for multiple sectors:

– Automotive Electronics

Protects ECUs, sensors, and onboard chargers against load-dump and ignition surges using automotive-grade TVS diodes, ensuring stable operation in demanding vehicle environments.

– Industrial Control

Safeguards PLCs and servo drives through TVS + varistor + fuse combinations, resisting strong electromagnetic surges from motor sparks and drive system operations.

– Consumer & Medical Electronics

Enables compact surge protection for smart appliances and portable medical devices using miniaturized TVS + ceramic capacitors, helping meet both space constraints and EMC certification requirements (3C, UL).

Conclusion

LTPCBA’s TVS Protection Board offers manufacturers a flexible, customizable solution for transient surge challenges through **modular design, full component compatibility, and multi-scenario adaptability**. Whether meeting automotive reliability standards, resisting industrial surge environments, or satisfying consumer space limitations, this PCB enables tailored protection through configurable component integration — helping customers achieve enhanced performance and reliability in surge protection.
